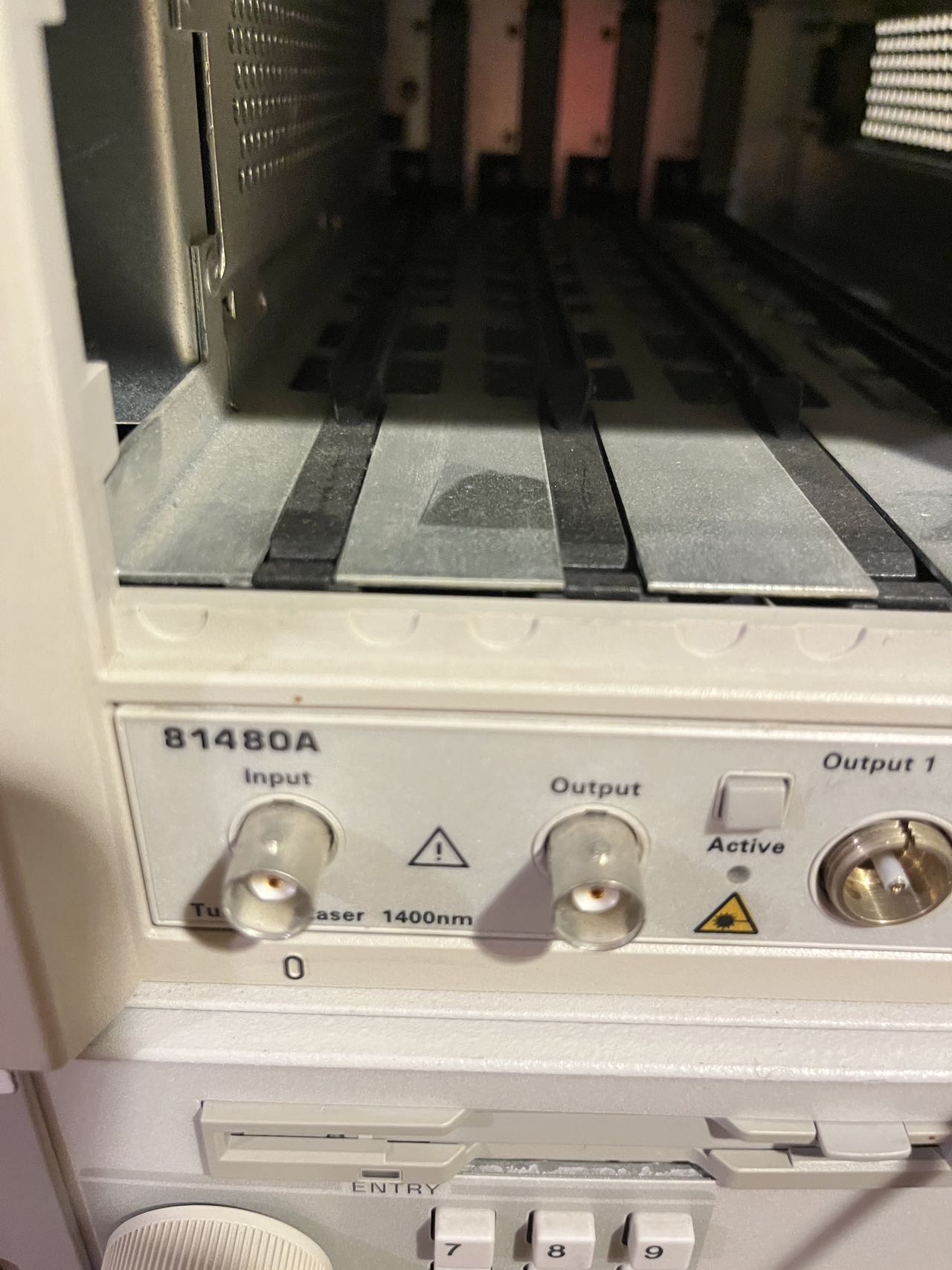

keysight Agilent HP 81480A Tunable Laser Source Module

$14,500.00

Quantity :

Product Details

The Agilent 81480A tunable laser source covers the S-band. (1370 to 1480nm).

It is especially designed for testing critical DWDM passive components.

The Agilent 81480A is specially designed for the S-Band.

It has continuous sweep through full wavelength range

with mode-hop free tuning over full wavelength range.

The 81480A also has low source spontaneous emission

output for high dynamic range.

Other key features include high power optical output

for optical amplifier test and a built-in real-time wavelength meter.

Both optical outputs of the 81480A are equipped with

Panda type polarization maintaining fiber.

Features:

Wavelength Range: 1370nm to 1480nm
Max. Output Power: + 5.5dBm
Wavelength Accuracy (abs.): +-0.01nm
Wavelength Repeatability (typ.): +-0.5 pm
Wavelength Stability (typ.): <+- 1pm
Signal to Source Spontaneous Emission Ratio: >=61dB/nm Output1 (1420 - 1470nm)
Signal to Total Source Spontaneous Emission Ratio: >=58dB Output1 (1420 - 1470 nm)
